BESS Augmentation Strategy: When and How Much to Add

Leave a message

Ausy
Ausy
Ausy focuses on product marketing and content development for Polinovel's commercial and industrial energy storage solutions.

Battery energy storage systems do not maintain the same usable energy capacity throughout a 15–20 year operating life. Calendar aging, repeated cycling, operating temperature, depth of discharge, state of charge, and system duty gradually reduce the amount of energy that the original battery fleet can deliver.

For utility-scale energy storage asset managers, independent power producers, EPC contractors, and engineering decision-makers, BESS augmentation provides a way to restore degraded capacity, maintain contracted energy requirements, or expand storage duration without replacing an entire battery plant.

However, an effective augmentation strategy is not simply a decision to add more batteries after several years. The project must determine when additional capacity is actually required, how much usable energy should be added, whether the expansion should occur on the AC or DC side, how new batteries will operate alongside aged batteries, and whether the original PCS, transformer, switchgear, controls, thermal management, and site layout can support future expansion.

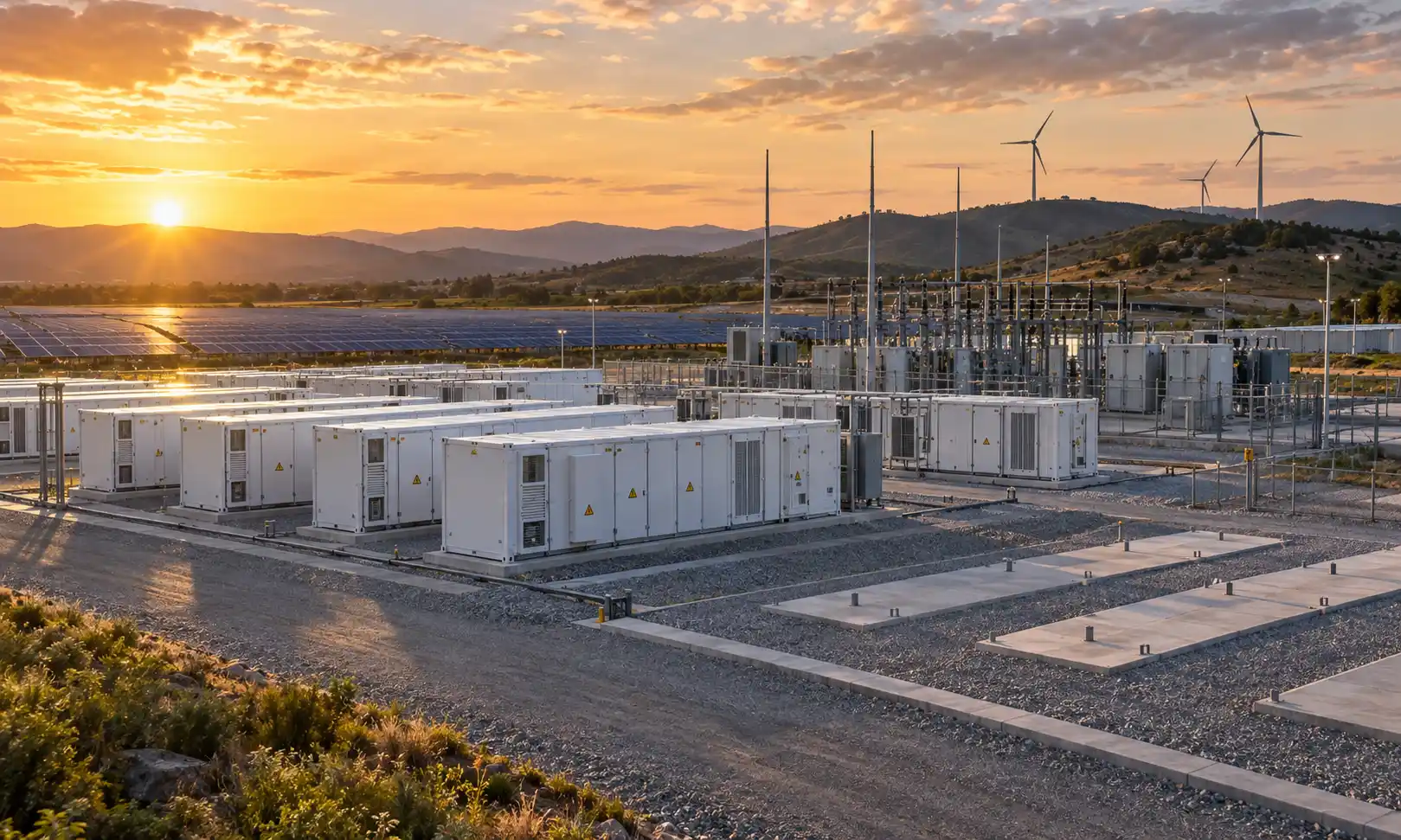

Utility-scale BESS facility

What Is BESS Augmentation?



BESS augmentation is the process of adding, replacing, or reorganizing battery capacity within an operating battery energy storage system to compensate for degradation or meet new project requirements.

Most augmentation projects fall into two categories:

Capacity restoration:

additional battery capacity is installed to compensate for degradation and keep usable energy above a contractual or operational requirement.

Capacity expansion:

additional energy storage is installed to increase system duration, support higher energy throughput, or adapt the asset to new commercial requirements.

Augmentation therefore differs from simply replacing failed battery modules. It is normally a planned lifecycle intervention based on system-level capacity, state of health, project economics, and future operating requirements.



BESS Augmentation vs Oversizing vs Repowering

Augmentation, oversizing, and repowering all address long-term BESS performance, but they occur at different stages of the asset lifecycle and solve different problems.

Strategy When It Occurs Main Purpose Main Trade-Off
Oversizing Initial construction Install additional battery capacity before degradation occurs Higher upfront investment and underutilized early-life capacity
Augmentation During operation Restore degraded capacity or increase energy duration Requires future integration, procurement, and commissioning
Repowering Usually later in asset life Replace or substantially upgrade aging batteries, PCS, or other major equipment Larger intervention and potentially more extensive redesign

Oversizing reduces future integration risk because additional capacity is already installed on day one. Augmentation defers part of the capital investment and allows the project to respond to actual degradation rather than a purely forecasted curve. Repowering becomes more relevant when multiple major system components are approaching the end of their useful life.

Some projects use a hybrid approach by installing a reasonable initial capacity reserve while preserving physical and electrical provisions for staged augmentation later.



Why BESS Augmentation Becomes Necessary as Batteries Age

The central challenge is that the commercial obligation of a storage project may remain relatively stable while the physical battery capacity gradually declines.

A BESS contracted to deliver a defined amount of usable energy cannot assume that its original battery nameplate capacity will remain available throughout the project life. As degradation progresses, the difference between required deliverable energy and available battery capacity becomes increasingly important.

Planning Variable What Affects It Augmentation Implication
Capacity degradation Cell chemistry, temperature, cycling, SOC, C-rate, calendar aging Determines when existing battery capacity approaches the required performance floor
Contracted usable energy Tolling agreement, PPA, grid service, facility requirement Defines the minimum capacity the asset must continue to deliver
Operating profile Daily cycles, depth of discharge, power demand, dispatch strategy Changes the expected degradation trajectory
Battery warranty Supplier degradation curve, operating conditions, throughput limits Establishes allowable operating and capacity conditions
Future system expansion Market requirements, longer duration, facility growth May trigger augmentation even before degradation reaches a critical level

For this reason, augmentation should be considered during original project engineering rather than treated only as a late-life maintenance response.

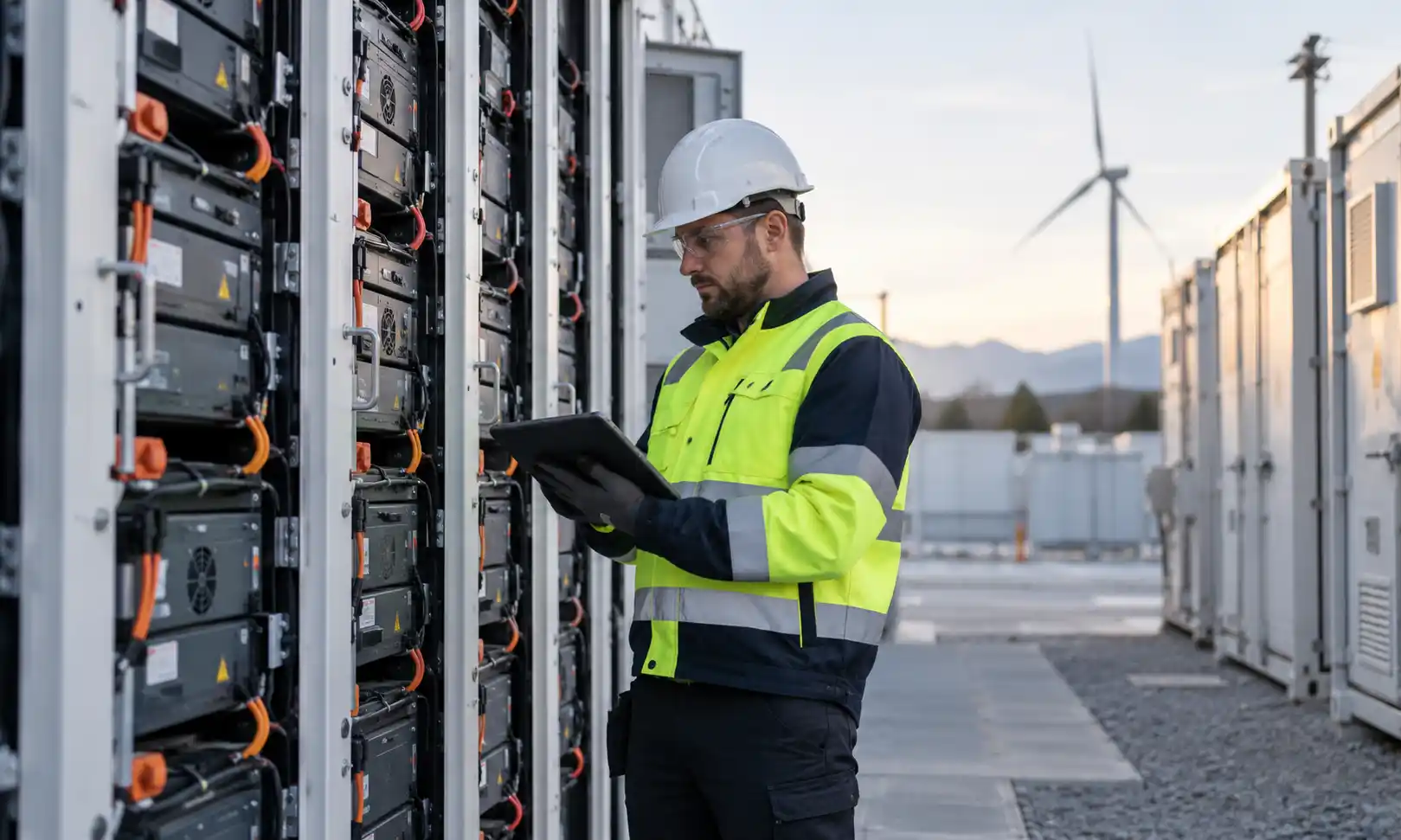

BESS battery inspection

What Exactly Causes Battery Capacity to Degrade?

Battery degradation is driven by irreversible electrochemical changes that occur during both active operation and idle periods.

Two mechanisms are especially important for BESS lifecycle planning: calendar aging and cycle aging.

Calendar Aging

Calendar aging occurs even when a battery is not actively cycling. Its rate depends on factors including battery chemistry, temperature, average state of charge, and the amount of time the battery remains at particular operating conditions.

Cycle Aging

Cycle aging results from repeated charging and discharging. Depth of discharge, C-rate, operating temperature, charging profile, and total energy throughput all affect how rapidly battery performance changes.

During lithium-ion battery aging, changes such as solid electrolyte interphase growth, loss of active lithium, electrolyte degradation, and increasing internal resistance can gradually reduce available capacity and power capability.

There is no single annual degradation rate that accurately represents every utility-scale BESS. For augmentation planning, the manufacturer's warranted degradation curve should be combined with actual field operating data, capacity tests, BMS records, temperature history, and accumulated energy throughput.

Operating the batteries within the manufacturer-approved SOC and temperature range can help reduce avoidable degradation, but the optimal operating window should remain aligned with the battery warranty and the commercial dispatch strategy of the project.



When Should a BESS Be Augmented?

A BESS should not be augmented simply because it has reached a predefined calendar year. Two projects commissioned at the same time may require augmentation at very different stages because their cycling intensity, operating temperature, battery chemistry, SOC profile, and contractual requirements may differ substantially.

A stronger approach is to use performance-based augmentation triggers.

1. Capacity Test Results Approach the Required Energy Floor

Periodic capacity testing provides direct evidence of how much usable energy the battery system can deliver.

The key comparison should be:

Forecast usable system capacity versus required future deliverable capacity.

If the degradation trend indicates that the BESS will fall below its performance requirement before the next practical intervention window, augmentation planning should begin before the actual shortfall occurs.

2. State of Health Shows a Consistent Downward Trend

BMS state-of-health estimates can provide an early indication of battery degradation between formal capacity tests.

SOH should not normally be used as the only augmentation trigger because estimation methods vary between battery systems. It is more useful when evaluated together with capacity tests, operating history, and degradation trends.

3. Contracted Capacity Is at Risk

A battery does not need to reach technical end of life before becoming commercially insufficient.

If the system is required to maintain a defined amount of usable energy or discharge duration, augmentation may become necessary as soon as the forecast indicates that the asset will no longer satisfy that obligation.

4. Thermal or Power Derating Becomes More Frequent

As batteries age, changes in internal resistance and thermal behavior can affect more than total energy capacity.

If the system increasingly reaches thermal, voltage, or current limits under the same operating profile, the operator should investigate the cause. Augmentation may be part of the solution, although thermal management, operating strategy, battery condition, and control settings should also be evaluated.

5. The Commercial Requirement Changes

Augmentation does not always result from battery degradation.

A project owner may intentionally increase storage capacity because longer duration becomes commercially valuable for renewable energy shifting, energy arbitrage, peak shaving, capacity services, microgrid operation, or backup power.



How to Calculate Capacity Fade and Plan Augmentation

Accurate augmentation planning requires translating battery degradation into future usable energy rather than relying on a single nameplate capacity figure.

The model should start from the actual AC energy requirement at the point where project performance is measured.

Step 1: Establish the Required Deliverable Energy

Define the minimum AC energy that the system must deliver under the relevant contract or operating requirement.

The calculation should use project-specific PCS efficiency, transformer losses, auxiliary consumption, thermal management loads, and other applicable system losses rather than a universal efficiency assumption.

Step 2: Establish the Existing Battery Performance Baseline

Use available data such as:

  • commissioning capacity test results
  • periodic capacity tests
  • BMS state-of-health estimates
  • equivalent full cycles
  • energy throughput
  • temperature history
  • charge and discharge power profiles
  • average SOC and depth of discharge

Step 3: Map the Degradation Curve

Apply the battery supplier's degradation model and update it with actual operating data as the asset matures.

The original financial model should therefore evolve into a field-informed degradation forecast rather than remain fixed for the entire project life.

Step 4: Forecast the Capacity Threshold

Determine when the projected usable capacity approaches the minimum contractual or operational requirement.

Procurement lead time, engineering review, permitting, equipment manufacturing, installation, and commissioning should all be incorporated into the trigger date.

Step 5: Determine the Required Augmentation Capacity

A practical starting framework is:

Required future deliverable energy − forecast deliverable energy from the existing battery fleet + project-specific reserve = required additional usable energy.

This additional usable energy must then be converted into the amount of new DC battery nameplate capacity required.

Augmentation-ready BESS site

How Much Battery Capacity Should Be Added?

Augmentation quantity should not be selected as an arbitrary percentage of the original BESS capacity.

The amount of new capacity depends on the future performance requirement and the condition of the existing battery fleet.

Start With Usable AC Energy

If the project obligation is measured at the AC point of interconnection, the augmentation model should begin with the amount of AC energy that must be delivered.

Battery DC nameplate capacity is not equal to usable AC energy.

Account for the Usable SOC Window

Batteries are normally operated within a defined SOC range rather than from theoretical 0% to 100% capacity.

The usable SOC window should therefore be considered when converting the required usable energy into battery nameplate capacity.

Include PCS, Transformer, and Auxiliary Losses

The project-specific conversion path may include losses from:

  • DC cabling
  • PCS equipment
  • medium-voltage transformers
  • HVAC or liquid cooling
  • pumps and fans
  • control systems
  • other auxiliary equipment

Model Degradation After the Augmentation Event

The purpose of augmentation is not simply to restore capacity on the installation date.

The expanded BESS should continue meeting the required performance level until the next planned intervention or project milestone.

The new battery capacity should therefore include an appropriate allowance for its own future degradation.

Model Existing and New Batteries as Separate Vintages

After augmentation, the original batteries and the newly installed batteries may have very different ages, capacities, internal resistance, thermal behavior, and warranty conditions.

Lifecycle models should therefore track the two battery generations separately even when the EMS dispatches them as one storage plant.



Choosing Between AC-Side and DC-Side BESS Augmentation

When new battery capacity is required, engineering teams must determine how the additional batteries should be integrated into the existing storage plant.

The two primary approaches are DC-side augmentation and AC-side block addition.

DC-Side Augmentation

DC-side augmentation adds new battery capacity behind existing power conversion equipment.

New battery racks, cabinets, or containers may be connected to the existing DC architecture while continuing to use some or all of the original PCS capacity.

This approach can reduce the amount of new balance-of-system equipment required, but it depends heavily on the original system design.

The engineering team must confirm sufficient:

  • PCS DC input capability
  • DC bus capacity
  • breaker capacity
  • cable capacity
  • protection coordination
  • communication capacity
  • thermal management capability
  • physical installation space

Depending on the architecture, electrical separation or DC/DC conversion may be used to manage voltage and operating differences between battery generations. This should be determined from the actual system topology rather than treated as a universal requirement.

AC-Side Augmentation

AC-side augmentation installs a new battery power block with its own power conversion equipment and connects the additional system on the AC side.

A new block may include:

  • battery containers
  • BMS
  • PCS
  • transformer
  • switchgear
  • thermal management
  • fire detection and protection
  • local control equipment

This creates stronger electrical separation between the original battery fleet and the new battery equipment.

It can make it easier to accommodate different battery generations, voltage architectures, and potentially different battery technologies, but usually requires more equipment, more physical space, and a broader electrical integration review.

AC vs DC BESS Augmentation Comparison

Integration Dimension DC-Side Augmentation AC-Side Augmentation
Connection point Behind existing PCS AC or medium-voltage collection system
Existing PCS reuse Higher potential Lower
New PCS requirement Not always required Typically required
Battery generation separation More integration engineering required Easier to isolate
Compatibility requirements Higher Generally more flexible
Ability to increase MW Limited by existing PCS Possible if interconnection and AC infrastructure permit
Existing DC headroom Critical Less dependent on existing DC infrastructure
Equipment quantity Generally lower Generally higher
Site footprint Potentially lower Potentially higher
Best suited to Systems originally designed with DC expansion capability Projects requiring stronger separation between battery generations

Neither architecture is universally superior. The correct choice depends on the original plant design, future power requirement, battery compatibility, site layout, electrical headroom, project downtime, and interconnection conditions.



The Engineering Challenge of Mixing New and Aged Batteries

One of the most difficult parts of BESS augmentation is integrating new battery capacity with batteries that have already operated for several years.

New and aged battery populations do not behave identically.

Chemistry Compatibility

Different battery chemistries can have different voltage curves, charge limits, thermal requirements, SOC estimation behavior, and safety characteristics.

A plant-level EMS may be capable of coordinating separate battery blocks using different battery generations, but directly combining different chemistries within the same DC string creates much greater engineering complexity.

Voltage Window

If new and aged batteries share DC equipment, their operating voltage ranges must remain compatible with the PCS and protection architecture.

A mismatch can restrict the usable capacity of the new batteries or create additional control constraints.

State of Health Differences

A new battery may begin operation close to its initial usable capacity while the original battery fleet has already experienced years of degradation.

If batteries with substantially different SOH are forced to operate as one electrical string, the weaker battery population may reach operating limits before the newer batteries.

Internal Resistance and Current Sharing

Battery internal resistance changes with aging.

Differences in resistance can influence current distribution, voltage response, thermal behavior, and available power when battery generations share electrical infrastructure.

BMS Compatibility

The expanded BMS architecture should answer questions such as:

  • Can the master BMS recognize additional battery racks?
  • Can multiple battery generations be monitored separately?
  • Are communication protocols compatible?
  • Can firmware versions operate together?
  • Can alarm thresholds and protection limits be configured appropriately?
  • Can SOC and SOH be tracked independently by battery vintage?

EMS Compatibility

The EMS may need to dispatch the original and new batteries differently.

The two battery populations may have different:

  • available capacity
  • power capability
  • efficiency
  • degradation cost
  • warranty conditions
  • thermal limitations

A scalable EMS allows these differences to be managed instead of forcing every battery block to follow the same operating profile.

Thermal Management

Additional battery capacity also creates additional thermal load.

The augmentation design should confirm that the cooling or heating architecture can support the expanded battery inventory under the expected ambient temperature and operating profile.

Where mixed-age integration creates excessive electrical or operational constraints, maintaining stronger electrical separation between battery generations can simplify control and lifecycle management.

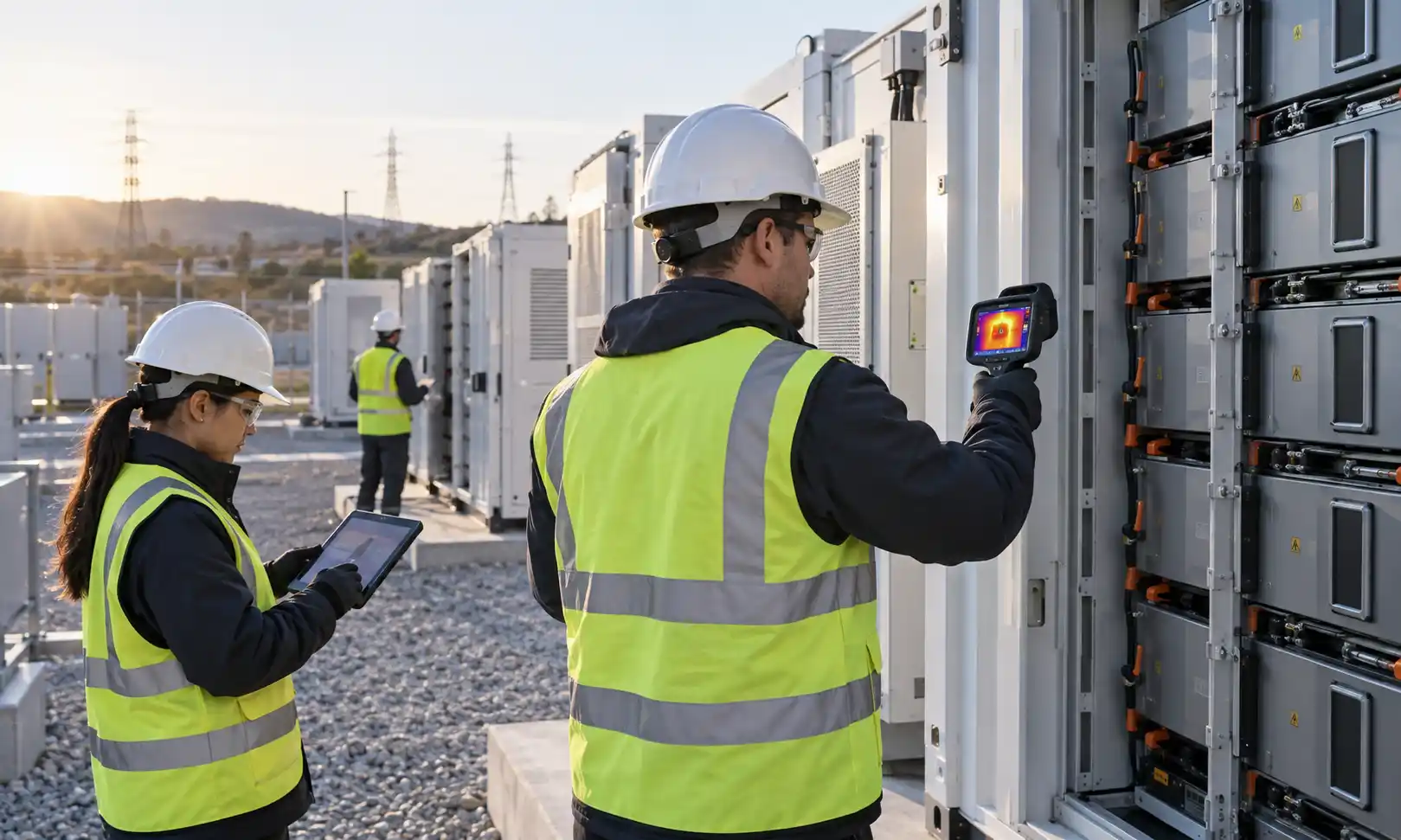

BESS thermal inspection

How to Design an Augmentation-Ready BESS From Day One

The easiest augmentation project is one that the original BESS was designed to accept.

Future expansion should therefore be considered during initial site engineering, even if the additional battery capacity will not be installed for many years.

Reserve Physical Space

Future battery containers or cabinets require more than unused land.

The site plan may need to reserve:

  • equipment foundations
  • maintenance clearance
  • fire separation
  • access roads
  • drainage
  • cable routes
  • auxiliary equipment space
  • crane or installation access

Preserve Electrical Headroom

For planned DC augmentation, the original design should evaluate whether future battery capacity can be supported by:

  • DC busbars
  • breakers
  • disconnects
  • cables
  • PCS DC input limits
  • protection systems

For AC-side expansion, future planning should consider:

  • transformer capacity
  • medium-voltage switchgear
  • AC collection system
  • protection coordination
  • auxiliary power
  • interconnection limits

Separate Energy Expansion From Power Expansion

Adding MWh does not automatically increase MW.

A project may increase battery energy capacity while retaining the same PCS power rating, thereby increasing storage duration without increasing maximum export power.

If the project intends to increase both energy and power, the PCS, transformer, switchgear, grid connection, and protection system must also be reviewed.

Design Communication Systems for Expansion

Future battery racks, containers, and PCS units require communication capacity.

The original design should consider:

  • BMS addressing
  • EMS device capacity
  • communication ports
  • network architecture
  • data historian capacity
  • control hierarchy
  • remote monitoring
  • cybersecurity requirements

Plan Thermal Management for Future Capacity

Expansion may require additional HVAC equipment, liquid cooling capacity, pumps, coolant circuits, heaters, sensors, and auxiliary power.

The original thermal architecture should identify which components can be expanded and which components would need replacement if battery capacity increases.

Plan Fire Protection and Emergency Systems for Expansion

Future battery blocks may require additional fire detection zones, emergency shutdown logic, suppression systems, gas detection, and emergency response provisions.

These requirements should be evaluated against the applicable codes, tested system configuration, and the requirements of the local authority having jurisdiction.

Define Expansion Rights During Procurement

Technical capability alone does not guarantee that augmentation will be straightforward.

Original procurement contracts should clarify:

  • whether future augmentation affects the existing warranty
  • who is permitted to perform expansion work
  • whether compatible battery equipment is expected to remain available
  • whether third-party batteries can be integrated
  • which BMS and EMS interfaces will be documented
  • who is responsible for firmware updates
  • which commissioning tests are required after expansion



Financial Modeling for Oversizing Versus Staged Capacity Additions

The financial decision between initial oversizing and staged augmentation is fundamentally a trade-off between upfront capital deployment and future integration risk.

Factor Day-One Oversizing Staged Augmentation
Initial CAPEX Higher Lower
Future integration risk Lower Higher
Early-life capacity utilization Potentially lower Generally higher
Technology flexibility Lower Potentially higher
Future battery price exposure Lower Higher
Future construction activity Reduced Required
Capital timing More capital committed on Day 1 Capital deferred until needed

Initial oversizing can simplify the lifecycle strategy because the degradation reserve is already installed. It can also reduce the risk that compatible equipment becomes unavailable later.

However, it requires the owner to finance battery capacity that may not be required for many years.

Staged augmentation defers part of the capital expenditure and allows future capacity decisions to be based on actual degradation, updated market requirements, and available battery technology.

The economic model should not assume that future battery prices will always decline. Battery prices, supply chains, tariffs, transportation costs, safety requirements, labor, financing conditions, and equipment availability can all change over the life of a project.

Augmentation Can Also Increase Storage Duration

An owner may choose to add more capacity than is required simply to restore degradation.

For example, an existing system can potentially be expanded to support a longer discharge duration if the PCS, transformer, grid connection, site layout, and commercial market support the change.

The value of such expansion is market-specific. Revenue assumptions should therefore be based on the actual electricity market, dispatch model, and expected future revenue stack rather than a universal percentage uplift.



What Should Be Included in BESS Augmentation Cost Modeling?

The battery modules themselves are only one part of augmentation cost.

A lifecycle financial model should also evaluate the following.

Battery Hardware

  • cells
  • modules
  • racks
  • battery cabinets or containers
  • BMS
  • thermal management
  • fire detection and protection

Power Conversion Equipment

AC-side augmentation may require additional PCS equipment. DC-side augmentation may reuse existing PCS infrastructure but can require modifications to DC equipment.

Electrical Infrastructure

  • transformers
  • switchgear
  • breakers
  • cables
  • protection upgrades
  • metering
  • auxiliary power systems

Civil Works

  • foundations
  • trenching
  • roads
  • drainage
  • fencing
  • fire separation

Engineering and Integration

  • electrical studies
  • protection coordination
  • BMS integration
  • EMS modification
  • software testing
  • thermal review
  • commissioning

Downtime and Lost Revenue

Installation and commissioning may reduce asset availability. The economic model should include the value of planned outages where relevant.

Remaining Life of Existing Equipment

Reusing existing PCS, transformers, cooling equipment, and switchgear creates value only when those components have sufficient remaining useful life.

If multiple balance-of-system assets are already approaching replacement age, a broader repowering strategy may be more economical than incremental battery augmentation.

Safety and Code Review for Augmented Battery Storage Systems

Adding new battery capacity changes the physical and electrical configuration of an operating BESS.

The augmentation project should therefore include a new safety and code review rather than assuming that the original installation approvals automatically apply to every future configuration.

Depending on the jurisdiction and project design, the review may involve:

  • UL 9540 system requirements
  • UL 9540A thermal runaway fire propagation test data
  • NFPA 855 requirements
  • applicable electrical codes
  • local fire code
  • equipment spacing
  • fire detection
  • gas detection
  • suppression strategy
  • emergency shutdown
  • ventilation or deflagration controls
  • emergency response planning
  • AHJ review

Battery chemistry is also an important design factor. Modern utility-scale projects commonly use lithium iron phosphate cells because of their thermal stability and suitability for stationary storage, but chemistry alone does not eliminate thermal runaway risk.

The safety strategy should evaluate the complete battery system, including cell design, BMS protection, thermal management, electrical isolation, propagation behavior, enclosure configuration, detection, suppression, and emergency response.

Separation distances, detection systems, suppression systems, and other fire protection measures should be based on the applicable code, tested system configuration, site conditions, and AHJ requirements rather than treated as universal values for every augmentation project.



BESS Augmentation Planning Workflow



Define the performance requirement.

Establish required usable energy, power, duration, availability, and contractual performance.



Establish the degradation baseline.

Combine capacity tests, BMS data, throughput, cycling history, and temperature records.



Forecast the capacity threshold.

Determine when usable capacity is expected to approach the required performance floor.



Determine the augmentation gap.

Calculate the additional usable energy required through the next lifecycle period.



Select the architecture.

Evaluate DC-side augmentation, AC-side block addition, battery replacement, or a hybrid strategy.



Verify system headroom.

Review PCS, transformer, switchgear, breakers, cables, thermal management, controls, and site layout.



Evaluate battery compatibility.

Review chemistry, voltage, SOH, internal resistance, BMS, EMS, and thermal behavior.



Complete commercial and regulatory review.

Confirm warranty, permits, interconnection requirements, insurance, code requirements, and supplier responsibilities.



Install and integrate the new capacity.

Coordinate construction with the operating requirements of the existing plant.



Recommission the expanded BESS.

Verify capacity, control logic, protection, thermal performance, alarms, and plant-level operation.



What Must Be Recommissioned After BESS Augmentation?

Augmentation should not be treated as a simple battery delivery followed by immediate operation.

The expanded plant is now a different electrical and control system and should be recommissioned accordingly.

Usable Capacity

Confirm that the combined battery system can deliver the expected usable energy under the defined test conditions.

SOC Calibration

Verify that state-of-charge estimation is functioning correctly across the original and new battery fleets.

BMS Communication and Alarms

Confirm communication with all new battery blocks and test relevant alarms, protection thresholds, and shutdown logic.

EMS Dispatch

Verify that the EMS can dispatch the expanded capacity correctly and, where necessary, manage battery generations independently.

PCS Limits

Confirm DC voltage, current, power, and operating limits after the battery configuration changes.

Protection Settings

Review breakers, relays, isolation devices, emergency shutdown logic, and protection coordination where required.

Thermal Performance

Confirm that the cooling or heating system can maintain acceptable battery temperatures under the expanded thermal load.

Metering and Performance Acceptance

Update the post-augmentation performance baseline so that future degradation can be measured against the expanded system condition.



Common BESS Augmentation Mistakes

1

Waiting Until the System Has Already Fallen Below Its Requirement

Engineering, procurement, permitting, manufacturing, and site construction require time. Planning should begin before a capacity shortfall occurs.

2

Using a Fixed Calendar Year as the Only Trigger

A financial model may assume an augmentation year, but actual implementation should be adjusted using real system performance data.

3

Reserving Land but No Electrical Capacity

Physical space alone does not make a BESS augmentation-ready. Electrical, control, thermal, and safety infrastructure must also support future capacity.

4

Assuming New and Old Batteries Can Simply Be Connected Together

Battery integration requires evaluation of voltage, SOH, internal resistance, BMS architecture, thermal behavior, and protection.

5

Ignoring PCS and Transformer Limits

Additional MWh does not automatically create additional MW.

6

Ignoring Warranty Conditions

Future modifications can affect responsibility for legacy equipment. Expansion rights and supplier responsibilities should be understood before changes are made.

7

Comparing Battery Hardware Cost Only

A lower battery purchase price can be offset by electrical upgrades, engineering work, long outages, or difficult integration.

8

Skipping System-Level Recommissioning

The augmented BESS should be tested as an integrated system before returning to normal operation.

Frequently Asked Questions




Technical answers for planning battery storage capacity additions and lifecycle upgrades.

What is BESS augmentation?

+

-

BESS augmentation is the process of adding, replacing, or reorganizing battery capacity during the operating life of a battery energy storage system. It is commonly used to compensate for degradation, maintain required usable energy, or increase storage duration.

When should a BESS be augmented?

+

-

There is no universal augmentation year. The decision should be based on measured usable capacity, state-of-health trends, degradation forecasts, contractual requirements, project economics, and the time required to engineer and procure the expansion.

What is the difference between BESS augmentation and oversizing?

+

-

Oversizing installs additional battery capacity during initial construction. Augmentation adds capacity later as the original batteries degrade or as project requirements change.

What is the difference between BESS augmentation and repowering?

+

-

Augmentation normally adds capacity to an operating system while retaining much of the existing infrastructure. Repowering typically involves a broader replacement or upgrade of aging batteries, PCS equipment, or other major plant components.

What is DC-side BESS augmentation?

+

-

DC-side augmentation adds new battery capacity behind existing power conversion equipment. It can reuse existing PCS infrastructure but depends on sufficient DC headroom, compatible voltage architecture, protection capacity, and battery integration capability.

What is AC-side BESS augmentation?

+

-

AC-side augmentation adds a separate battery power block with its own PCS and connects the new equipment to the AC collection system. It provides stronger separation between battery generations but generally requires more balance-of-system equipment.

Can new batteries be added to an older BESS?

+

-

Yes, but compatibility must be evaluated. Important factors include battery chemistry, voltage range, state of health, internal resistance, current capability, BMS communication, EMS control, thermal behavior, and warranty requirements.

How much capacity should be added during augmentation?

+

-

The required capacity should be calculated from the future usable energy requirement, forecast remaining capacity of the existing battery fleet, applicable system losses, usable SOC window, future degradation, and an appropriate project-specific reserve.

Does adding more batteries increase BESS power?

+

-

Not necessarily. Adding battery capacity increases available MWh, but maximum MW may remain limited by the existing PCS, transformer, switchgear, and grid interconnection.

Can a different battery chemistry be used during augmentation?

+

-

It may be possible when the new battery system is sufficiently electrically and operationally separated from the legacy system. Directly combining different battery chemistries within the same DC architecture requires much more detailed engineering and should not be assumed to be compatible by default.



Conclusion

BESS augmentation should not be treated as an emergency response to an aging battery fleet. For long-life commercial and utility-scale projects, future capacity expansion should be considered during the original system design.

The actual augmentation event should then be triggered by measured asset performance, contractual requirements, future operating needs, and project economics rather than a universal rule that every BESS must add a fixed percentage of capacity after a fixed number of years.

A robust BESS augmentation strategy connects battery degradation monitoring, usable capacity forecasting, electrical headroom, battery compatibility, lifecycle economics, safety review, and recommissioning into one long-term asset management plan.

For new projects, one of the most valuable decisions can therefore be made before the first battery container arrives on site: design the BESS so that future capacity can be added without requiring the entire energy storage plant to be redesigned.

Send Inquiry
Smarter Energy, Stronger Operations.

Polinovel delivers high-performance energy storage solutions to strengthen your operations against power disruptions, lower electricity costs through intelligent peak management, and deliver sustainable, future-ready power.
