"We are adding battery storage to our solar project. Should we use AC coupling or DC coupling?"
The answer starts with a single question: where does the battery connect relative to the solar inverter?

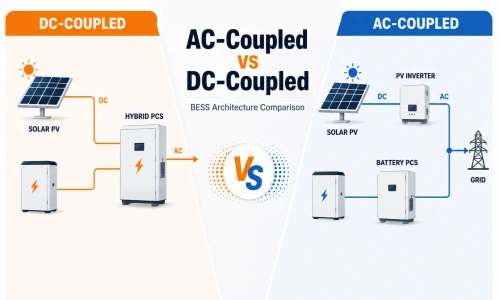

In an AC-coupled system, the battery connects on the AC side-after solar power has been converted. In a DC-coupled system, the battery connects on the DC side, before power is converted to AC.
This distinction affects retrofit complexity, charging flexibility, and the number of conversion stages between the PV system and the battery.
Neither architecture is universally better. The right choice depends on five factors: project stage, charging source, independence needs, grid constraints, and expansion plans.
How an AC-Coupled BESS Works
In an AC-coupled system:
- Solar panels generate DC power.
- The PV inverter converts it into AC power.
- The battery connects to the AC bus through a dedicated bidirectional power conversion system (PCS).
- The PV system and BESS meet on the AC side.
Solar charging path: PV array → PV inverter → AC bus →bidirectional PCS→ battery
This separation usually makes retrofit integration and independent operation easier. However, solar energy passes through more conversion stages before reaching the battery.
How a DC-Coupled BESS Works
In a DC-coupled system:
- The PV array and battery connect before power is converted into AC.
- Solar energy can reach the battery on the DC side without first being converted to AC.
- The two systems share or coordinate the power conversion stage.
- DC voltage, inverter capacity, and control logic must be coordinated across the system.
PV path: PV array → DC/DC or MPPT → common DC bus → hybrid PCS or inverter → AC bus
Battery path: Battery ↔ common DC bus
This can shorten the PV-to-battery conversion path and support clipped-energy recovery under suitable conditions. However, the battery, inverter, DC voltage, and control system must be designed together.
Note: A DC Battery Does Not Automatically Mean DC Coupling
All batteries store DC electricity. However, the battery itself does not determine the project's coupling method.
- Battery container → dedicated PCS → AC bus: the project may be AC-coupled.
- PV and battery → shared DC architecture → common inverter: this is a typical DC-coupled solar-plus-storage system.
The coupling method is determined by the overall electrical architecture.
AC-Coupled vs DC-Coupled BESS at a Glance
The connection point explains how each architecture works. It also affects how the system is integrated, charged, operated, and expanded. The table below summarizes the main project-level differences.
| Project Factor | AC-Coupled BESS | DC-Coupled BESS |
| Connection point | PV and BESS meet on the AC side | PV and BESS connect on the DC side |
| Power conversion | Separate PV inverter and battery PCS | Shared or coordinated inverter stage |
| Existing PV retrofit | Usually easier to add without redesigning the PV DC system | May require changes to the existing PV architecture |
| PV-to-battery path | Solar energy passes through more conversion stages | Solar energy may reach the battery through fewer conversion stages |
| Grid charging | Generally more flexible through the battery PCS | Depends more on the converter topology and control design |
| Clipped-energy recovery | Limited by the PV inverter output | May capture clipped PV under suitable conditions |
| Independent operation | PV and BESS can usually operate and be maintained more independently | PV and BESS are more closely coordinated |
| Future expansion | PV power, PCS power, and battery energy can often be expanded separately | Expansion must consider DC voltage and shared inverter limits |
Step 1 - Is This a New Project or an Existing PV System?
The project starting point is one of the first factors in an AC-coupled vs DC-coupled evaluation.
When the PV Plant Is Already Operating
For an operating PV plant, review:
- PV inverter condition and remaining service life
- AC bus and transformer capacity
- Switchgear and protection settings
- Point of interconnection (POI) and power limits
AC coupling is often evaluated first because the existing PV inverter and DC architecture can usually remain in place. The BESS can then connect through a dedicated bidirectional PCS.
This may reduce PV-side redesign. However, transformer capacity, protection coordination, and grid limits still need to be verified.
New Solar + Storage Project
A new project allows both architectures to be considered from the beginning.
The initial comparison should focus on whether the project will use:
- A shared or coordinated inverter stage
- Separate PV inverter and battery PCS
- Tighter PV–battery integration
- Greater operational independence
The charging strategy, operating requirements, grid limits, and expansion plan are evaluated in the following steps.
Key takeaway: Existing PV retrofits often give more weight to AC coupling. For new solar-plus-storage projects, both architectures should remain open for further evaluation.
Step 2 - What Will Be the Main Energy Path?
The next question in an AC coupling vs DC coupling evaluation is how energy will reach the battery.
When PV Is the Main Charging Source
A PV-dominant project should first confirm:
- Available solar surplus or inverter clipping
- Battery State of Charge (SOC) headroom and charging power
- Export limits
- Whether the stored energy has a valuable discharge window
In this case, DC coupling deserves closer evaluation. A DC-coupled solar system may shorten the PV-to-battery conversion path and capture clipped energy under suitable conditions. However, the benefit only exists when the battery is available to absorb that energy and can discharge it later for a useful purpose.
When Flexible Grid Charging Is Required
Grid charging may be important for:
- Peak shaving
- Energy arbitrage
- Demand response
- Grid services
The project should also confirm import limits, tariff and metering rules, and Energy Management System (EMS) dispatch requirements.
In this case, AC coupling often provides more flexibility. A dedicated battery PCS allows the BESS to charge and dispatch more independently of PV generation.
Key takeaway: The dominant charging source helps narrow the choice: direct PV charging strengthens the case for DC coupling, while flexible grid charging strengthens the case for AC coupling.
Step 3 - Must PV and BESS Operate Independently?
The next question is whether the PV system and BESS must operate as separate assets.
When Independent Operation Matters
This may include:
- PV continuing to operate during BESS downtime
- Independent grid charging and dispatch
- Separate maintenance schedules
- Independent participation in grid services
- Separate expansion of PV, PCS, and battery capacity
Architecture direction: AC coupling usually offers greater flexibility.
The PV inverter and battery PCS use separate conversion paths. This makes independent control, maintenance, and fault isolation easier to arrange.
When Shared Operation Is Acceptable
A DC-coupled architecture may be considered when closer system integration is acceptable.
Key checks include:
- Shared inverter capacity
- Simultaneous PV output and battery discharge
- Common power limits
- Fault and maintenance impact
- Required system availability
Closer integration may shorten the PV-to-battery path. However, the shared inverter can also create a common limit for operation and availability.
Key takeaway: AC coupling generally offers advantages when the PV system and BESS require independent operation, maintenance, or market participation. Conversely, DC coupling may be prioritized if the constraints of a shared architecture are acceptable and the project prioritizes higher PV-to-battery efficiency and lower equipment costs-provided specific design conditions are met.
Step 4 - What Does the Grid Connection Allow?
Grid connection requirements directly influence the choice of architecture. Even if the PV and energy storage systems are well-designed, the project may still fail to operate as expected if grid connection conditions do not support them.
Connection Point and POI
Start by confirming:
- Grid connection voltage
- Whether a step-up transformer is required
- Metering point and configuration
- Import and export limits
- Whether the PV system and BESS share the same POI
In an AC-coupled system, the PV inverter and battery PCS route power through separate conversion paths before combining on the AC side. In a typical DC-coupled system, PV generation and battery energy are integrated on the DC bus and exported through a shared or coordinated inverter.
This architectural distinction is critical when the POI is near its capacity limit. While sharing inverter and grid-connection capacity enhances the cost-effectiveness of DC coupling, it may also constrain simultaneous peak PV generation and full-power battery discharge.
Transformer Capacity
Transformer capacity is one of the first constraints to check in a commercial and industrial (C&I) BESS retrofit.
The existing transformer must be evaluated for:
- Additional load during BESS charging
- Reverse power flow during discharge
- Simultaneous PV and BESS operation
- Required import and export power
- Remaining capacity and service life
If the transformer cannot support the planned power flow, the project may require operating limits, equipment upgrades, or a different connection arrangement. The additional cost, installation space, and project schedule may also affect the architecture decision.
Protection and Medium-Voltage (MV) Integration
Adding a BESS changes the direction and level of power flow. The existing protection and MV system must therefore be reviewed.
Key checks include:
- Inverter-based fault-current characteristics
- Relay and protection settings
- Coordination between the PV inverter and battery PCS
- Existing MV switchgear capacity
- Available feeder or switchgear bay
- Metering and maintenance isolation
An AC-coupled system introduces a separate battery PCS on the AC network. Its interaction with the transformer, PV inverter, and existing protection devices must be coordinated.
A DC-coupled system may have a more centralized AC interface. However, DC-side isolation, shared inverter protection, and common failure effects still require project-specific evaluation. Neither architecture removes the need for a protection study.
Utility and Interconnection Requirements
The utility or interconnection agreement should confirm:
- Whether grid charging is permitted
- Maximum import and export power
- Export-control requirements
- Bidirectional grid operation
- Metering and communication rules
- Permission to provide grid services
These requirements may directly change the operating strategy and equipment scope.
For example, a low export limit may increase the value of storing surplus PV energy. By contrast, restricted grid charging may reduce the value of energy arbitrage or other grid-based operating modes.
Project tip: Request the utility's interconnection checklist early in project development. Protection, metering, export-control, communication, and grid-service requirements may change both the equipment scope and the architecture direction.
Key takeaway: When constraints on POI capacity, transformer sizing, and interconnection terms are strict, DC coupling offers distinct value by sharing inverters and minimizing grid interfaces. Conversely, if grid-connection conditions are flexible and independent dispatch is a priority, AC coupling generally delivers greater operational freedom.
Step 5 - What Is the Future Expansion Plan?
The initial architecture should support not only the current project scope but also the expected expansion plan. Before selecting AC or DC coupling, define what may increase in the future.
More Battery Energy or More PCS Power?
Adding battery energy increases available kWh and may extend discharge duration. However, it does not automatically increase output power.
More kW may require:
- Additional PCS capacity
- Higher battery current capability
- More transformer and switchgear capacity
- Additional feeder or cable capacity
- Sufficient headroom at the point of interconnection (POI)
- Revised interconnection approval
The project should therefore distinguish between adding energy, adding power, or adding both. This difference directly affects the expansion path.
AC Augmentation
AC augmentation adds a new BESS block with its own PCS on the AC side.
This approach may support staged expansion with less modification to the original PV DC architecture. If the transformer and POI have sufficient headroom, a new BESS block can be added without changing the capacity of the existing PCS.
This can make it easier to add battery energy, PCS power, complete BESS blocks, or separate PV inverter capacity in stages.
However, AC-side expansion still depends on site-level capacity. Transformer headroom, medium-voltage equipment, feeder capacity, protection coordination, EMS integration, and import and export limits must all be reviewed.
AC coupling supports modular expansion, but it does not remove grid-connection or equipment constraints.
DC Augmentation
DC augmentation adds battery capacity to the existing DC architecture behind a shared PCS or inverter.
This may support closer integration between PV and battery capacity, but the new equipment must remain compatible with the existing DC architecture. Key checks include:
- DC operating voltage range
- Maximum DC current
- Shared inverter headroom
- Battery operating window
- DC/DC converter capacity
- Battery management system (BMS) communication
- Control logic and EMS compatibility
The shared inverter is often the main limitation. Additional battery energy may extend discharge duration, but it cannot increase AC output if the inverter is already fully loaded.
Differences in battery chemistry, thermal management, voltage window, or communication protocol may require an additional DC/DC converter or wider system redesign. This can increase both project cost and conversion losses.
Future PV Expansion
The future PV plan should be evaluated together with the BESS expansion plan. In an AC-coupled system, additional PV capacity can often be connected through a separate PV inverter. This usually has less impact on the existing battery and PCS configuration.
In a DC-coupled system, new PV capacity must remain compatible with the existing:
- DC voltage and current limits
- DC/DC converter capacity
- Shared inverter capacity
- Control settings
- Simultaneous PV and battery operation
If PV and battery capacity are expected to expand together, DC coupling may remain suitable, provided sufficient headroom is reserved in the shared inverter and DC architecture.
Transformer, POI, and Control Capacity
Regardless of the coupling method, expansion may increase charging load, discharge power, and the number of controlled devices.
The project should confirm that:
- The transformer can support future charging and discharge power
- The POI has sufficient import and export capacity
- The EMS has enough interfaces, data capacity, and control capability
- Protection and interconnection approvals can support the expanded system
If the transformer or POI is already close to its limit, either architecture may require equipment upgrades, operating limits, or a new grid-connection review.
Key takeaway: If future expansion mainly adds battery energy and modular flexibility is important, AC coupling generally supports incremental expansion more easily. If future PV and battery capacity will grow together and conversion efficiency remains a priority, DC coupling may still be suitable when the DC voltage and shared inverter capacity are properly matched. When the POI is the main expansion limit, both architectures require a new grid-connection review.
Matching the Framework to Common Project Scenarios
Once the five questions above are answered, the architecture direction usually becomes clearer.
However, the result is not the same for every project. An existing PV retrofit, a new C&I solar-plus-storage system, and a utility-scale co-located project may each require a different starting point.
The table below shows how the framework applies to these three common scenarios.
| Project Scenario | Starting Direction | Main Reason |
| Existing C&I Solar Retrofit | Evaluate AC coupling first | The existing PV inverter can often remain in place while the BESS is added through a dedicated PCS |
| New C&l Solar +Storage | Compare both architectures | The design must balance direct PV charging, flexible grid charging, independent operation, and future expansion |
| Utility-Scale Co-Located PV + BESS | Model both options | Clipping recovery, POI limits, shared inverter capacity, dispatch strategy, and project economics can change the result |
These are starting directions, not final recommendations. Transformer capacity, grid limits, operating strategy, and future expansion may still change the architecture choice.
Project Information Required Before Architecture Selection
The five-step framework can narrow the direction. However, a final architecture recommendation still requires project-specific data.
| Information Category | Details to Provide |
| Project type | New project or existing PV retrofit |
| PV system | PV capacity, DC/AC ratio, and inverter model |
| BESS target | Required power, energy capacity, and discharge duration |
| Energy strategy | Main charging source, operating modes, and backup requirements |
| Grid connection | Grid voltage, POl, and import/export limits |
| Existing equipment | Transformer, switchgear, protection system, and available capacity |
| Electrical documents | Existing or proposed single-line diagram |
| Future requirements | Expansion plan, applicable standards, and grid-service goals |
These details help determine whether the initial architecture direction is technically practical. Without them, the general differences between AC and DC coupling can be explained, but a responsible final recommendation cannot be made.
Before the architecture is finalized, three common assumptions should also be examined.
Three Assumptions That Can Lead to the Wrong Choice
Even with the required project data, a few common assumptions can still distort the architecture decision.
"DC Coupling Is Always More Efficient"
DC coupling can reduce conversion losses along the PV-to-battery path, but total efficiency also depends on operating mode, measurement boundary, and auxiliary consumption. A shorter conversion path does not always translate into higher project value.
"Fewer Components Always Mean Lower Project Cost"
Sharing an inverter may reduce equipment duplication, but total project cost also includes DC/DC conversion, protection, controls, commissioning, and future modification costs. A lower initial equipment count can create tighter operating or expansion limits later.
"AC Coupling Is Only for Existing Solar Projects"
AC coupling is common in retrofits, but it can also serve new projects that require flexible grid charging, independent dispatch, or modular expansion. Project stage is one factor among many-it does not determine the architecture alone.
The comparison shows that neither architecture should be selected from a single advantage.
AC coupling generally offers more independence and modularity. DC coupling can shorten the PV-to-battery path and make better use of clipped energy or shared interconnection capacity.
The right choice comes from the full project picture: the starting point, energy path, operating requirements, grid connection, and expansion plan. These five factors should be evaluated together before the architecture is finalized.
Planning a Solar + Storage Project?
Share your project requirements with Polinovel's technical team.
