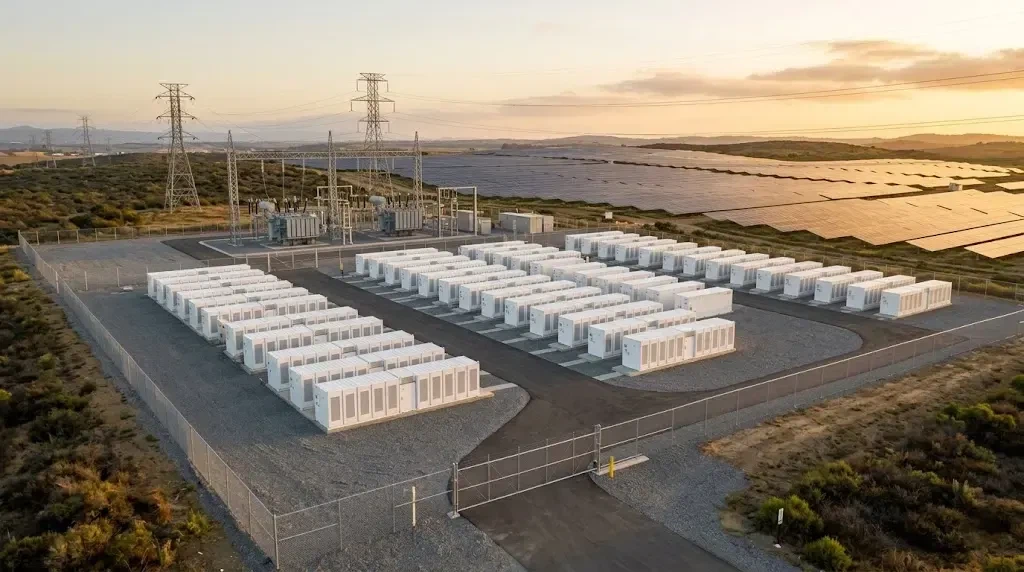

Grid-Scale Battery Storage in 2026: Costs & Tech Guide

Grid-scale battery storage is a battery energy storage system (BESS) connected to a transmission or distribution network to provide grid services. Projects range from smaller distribution-connected installations to multi-GW plants. Power is specified in MW and stored energy in MWh or GWh. These systems absorb surplus electricity from solar, wind or low-demand hours and discharge it for grid balancing, frequency regulation, peak shaving and renewable energy integration.

That definition has barely changed in five years. Almost everything around it has. Global utility-scale BESS deployments grew roughly 36% year-on-year through the first three quarters of 2025, with around 49.4 GW / 136.5 GWh of new capacity coming online in that window (figures from BloombergNEF and the IEA's Batteries and Secure Energy Transitions tracking). LFP has effectively become the default chemistry for new utility projects. In 2026, grid-scale BESS procurement involves battery chemistry, discharge duration, grid connection and the equipment included in the supply package. LFP batteries are widely used in new utility-scale projects, while longer-duration applications also require comparison with flow batteries and other storage technologies.

IPP developers, utility planners and EPC contractors need large-scale battery energy storage sized for the required discharge window and grid connection. Compare system costs, MW/MWh requirements and Polinovel configurations for your project.

2026 Grid-Scale Battery Storage Market Snapshot

Battery storage entered 2026 after another record year of global deployment. According to the International Energy Agency's Global Energy Review 2026 , 108 GW of new battery storage capacity was deployed worldwide in 2025, an increase of 40% from 2024. Around 80% of the new capacity was utility-scale, while lithium iron phosphate batteries accounted for approximately 90% of deployments.

The ACP and Wood Mackenzie U.S. Energy Storage Monitor reports that the country installed 3.3 GW / 8.4 GWh of battery energy storage across all market segments in the first quarter of 2026, 54% above the previous first-quarter record. By the end of June 2026, U.S. utility-scale battery storage had reached nearly 52 GW of nameplate power capacity, including 8.3 GW added in the first half of the year, according to the U.S. Energy Information Administration.

The ACP and Wood Mackenzie Q2 2026 release reports 5.4 GW / 18.9 GWh of new U.S. battery storage across all segments during the quarter. Utility-scale installations accounted for 4.7 GW / 17.6 GWh. Across all segments, average duration increased from 2.8 to 3.5 hours year over year.

These figures describe different stages of the market and should not be treated as interchangeable. The EIA total is operating power capacity at mid-year; the quarterly GW and GWh figures describe new installations. For project sizing, specify both discharge power and usable energy: a higher MWh rating does not automatically mean a higher MW output.

What the 2026 pipeline means for project procurement

Rapid battery manufacturing growth can lower cell and system prices, but a larger project pipeline does not remove delivery risk. Multiple projects entering construction at the same time can increase pressure on transformers, switchgear, medium-voltage equipment, qualified EPC contractors, interconnection studies, commissioning resources, and utility approval schedules.

Developers should therefore evaluate a proposal on more than battery price per kilowatt-hour. The procurement schedule should also confirm transformer and PCS lead times, grid-connection milestones, factory acceptance testing, site energisation responsibilities, commissioning resources, liquidated damages, and the contractual commercial-operation date.

What Is Grid-Scale Battery Storage?

The defining feature is not size alone - it is the point of connection. A grid-scale system sits on the transmission or bulk distribution network and provides services to the grid as a whole, not to a single building or microgrid. Its core functions are frequency regulation, peak shaving, capacity reserve, voltage support, renewable energy smoothing, and black start.

How grid-scale storage compares to other tiers

Three deployment archetypes

Front-of-the-meter (FTM) systems connect directly to transmission or bulk distribution. They are owned by utilities or IPPs and provide grid services at scale. Behind-the-meter (BTM) industrial systems sit on the customer side of the meter but are large enough to participate in wholesale energy markets - common in California, Texas, and parts of Australia. Co-located systems are paired directly with solar or wind farms, which is increasingly a contractual requirement: in our review of 2024–2025 utility procurement RFPs, the share of new solar PPAs that mandate paired storage has climbed sharply, and "solar-only" bids are becoming uncommon in capacity-constrained markets.

How Grid-Scale Battery Storage Works

A grid-scale BESS combines battery storage and BMS protection with a Power Conversion System (PCS), EMS controls, thermal management, fire protection and the required grid-connection equipment. Battery energy, PCS power and site controls must be specified together.

Charge and discharge cycle

During surplus generation - usually midday solar or overnight wind - the system charges by drawing AC from the grid (or DC directly from a co-located plant in DC-coupled designs). Energy is stored electrochemically in lithium-ion cells as DC. When the grid signals high demand, low generation, or a frequency excursion, the EMS dispatches a discharge.

The PCS converts and inverts

The grid runs on AC; cells store DC. The PCS converts AC to DC during charging and inverts DC back to AC on discharge. Round-trip efficiency on a well-specified 4-hour LFP system in 2026 lands at 86–90% AC-to-AC, depending on PCS design and ambient conditions. The PCS response speed - measured in tens of milliseconds - is what makes a battery viable for primary frequency response.

How the EMS Controls Dispatch

The Energy Management System (EMS) coordinates state of charge, operating limits, grid instructions and dispatch schedules. Revenue stacking can combine energy arbitrage, ancillary services and capacity payments where market rules allow. Battery condition, availability, market prices and control performance all affect the result.A well-tuned EMS stacking frequency regulation, energy arbitrage, and capacity payments can outperform a poorly dispatched identical system by 30–40% in annual revenue.

Types of Grid-Scale Energy Storage Technologies

Lithium iron phosphate (LFP)

Lithium iron phosphate (LFP) is widely used in grid-scale lithium-ion battery storage because of its thermal stability, cycle performance and supply availability.In 2024–2025, LFP took close to 95% of new utility-scale battery awards globally, driven by Chinese cell manufacturing scale, falling prices, and superior thermal stability versus older nickel-based chemistries. LFP containerized BESS packages combine battery racks with thermal management, monitoring and protection. Compare cycle-life specifications at the same depth of discharge, temperature, charge/discharge rate and end-of-life capacity.

A modern LFP-based grid storage cell typically delivers 4,000–6,000+ cycles to 80% state of health at 25°C and 70–80% depth of discharge. Pricing on the international cell market in early 2026 has settled in the $55–75/kWh range for utility-grade LFP - well below where most analysts expected for this point in the curve.

Nickel manganese cobalt (NMC)

NMC delivers higher energy density and is still preferred where physical footprint is the binding constraint - some urban substations, certain mobile applications. But it carries higher thermal runaway risk, depends on cobalt with its known supply chain and ethical issues, and costs more per kWh than LFP at scale. Its share of new utility deployments has fallen sharply since 2022.

Vanadium redox flow batteries (VRFB)

Flow batteries store energy in liquid electrolytes held in external tanks. Power and energy scale independently - a tangible advantage for long-duration applications. VRFB cycle life is excellent (manufacturer specifications often quote 20,000+ cycles, though the public fleet of multi-decade real-world data is still thin). The headwinds are real: upfront $/kWh is substantially higher than LFP, energy density is low, and balance-of-plant maintenance is more involved.Vanadium redox flow batteries (VRFB) store energy in liquid electrolytes held in external tanks. Separating power and energy capacity supports long-duration, high-throughput applications. VRFB makes sense above ~6 hours of duration; below that, LFP wins on cost.

Pumped hydro storage (PHS)

Pumped hydro is still the dominant form of grid-scale storage by installed energy capacity globally - the IEA tracks PHS at over 90% of total installed energy storage worldwide. Pumped hydro storage (PHS) is an established option for large-scale, long-duration energy storage, but it is not a battery technology.New build is constrained by geography (you need elevation difference and water), permitting (often 7–10+ years), and capital intensity. Most new PHS projects in 2025–2026 are concentrated in China, with smaller programs in Australia, Switzerland, and the US Pacific Northwest.

Compressed air, thermal, gravity, iron-air

Compressed Air Energy Storage (CAES) requires specific geology - salt caverns or large underground formations. Round-trip efficiency is typically 50–70%, lower than batteries. Iron-air batteries (notably from Form Energy), thermal storage (Antora, Rondo), and gravity-based systems (Energy Vault) are pre-commercial or in early demonstration. Several have signed offtake contracts but none has reached lithium-scale deployment volumes as of early 2026.

Technology comparison

Choosing the Right Storage Technology

Compare storage technologies against three project requirements:

• How many hours of duration do you need? For 2–4 hours, include LFP in the comparison. For 4–8 hours and longer, compare LFP, VRFB and other long-duration options using the same dispatch requirement, installed-cost boundary and financing assumptions.
• How many cycles per day? Translate cycling intensity and depth of discharge into lifetime energy throughput. 2+ cycles/day with daily 100% DoD: lean toward flow if duration permits, or oversized LFP with augmentation budgeted in.
• What is the dominant revenue stream? Frequency regulation rewards fast response - LFP and NMC excel. Energy arbitrage rewards round-trip efficiency - LFP. Capacity rewards low LCOS - depends on duration.

If duration, cycling intensity and the revenue model point to different options, compare at least two designs. Include conversion losses, auxiliary loads, degradation, augmentation, maintenance and financing in each case rather than assuming one chemistry delivers a fixed NPV improvement

Why Battery Projects Are Becoming Larger and Longer-Duration

The design of utility-scale battery projects is changing as the primary use case moves beyond short-duration ancillary services. According to the International Energy Agency's 2026 analysis of battery storage deployment , energy shifting accounted for more than 90% of newly commissioned battery projects in 2025, compared with approximately 40% in 2015.

Over the same period, the share of new projects primarily targeting ancillary services declined from approximately 45% to about 7%. This does not mean that frequency regulation and other fast-response services are disappearing. Instead, batteries are increasingly designed to move larger quantities of electricity between periods while continuing to provide balancing services when market rules and system requirements allow.

The change in application is also increasing storage duration. The IEA reports that the average duration of utility-scale projects commissioned in 2025 reached approximately three hours, up from around two hours in 2023, with a growing share of projects providing four hours of storage or more.

How changing market roles affect project sizing

A project designed mainly for frequency response may prioritise power, response speed, and availability over stored energy volume. A project designed for solar shifting or resource adequacy must retain enough usable energy to discharge through the required peak window after accounting for auxiliary consumption, state-of-charge reserves, degradation, temperature effects, and contractual availability requirements.

• One- to two-hour systems may remain appropriate where fast-response services or short price events provide most of the revenue.
• Two- to four-hour systems are increasingly used for daily solar shifting, peak capacity, and stacked wholesale-market services.
• Four-hour and longer systems require careful modelling of capacity accreditation, augmentation, cycle depth, charging opportunities, and the expected length of high-price periods.
• Multi-day reliability requirements should not be treated as a conventional four-hour lithium-ion application without additional firm capacity or long-duration storage.

Duration should be selected from the dispatch model

The lowest quoted equipment cost does not automatically produce the lowest levelised cost of delivered energy or the highest project return. Duration should be selected using an hourly or sub-hourly dispatch model that reflects the actual market, charging profile, contracted capacity obligation, round-trip efficiency, warranty limits, degradation curve, augmentation plan, and expected revenue saturation.

A longer system may retain more value as renewable penetration increases, but oversizing duration can reduce returns where the market does not compensate additional stored energy. The appropriate design is therefore determined by the revenue and reliability requirement, rather than by adopting a universal two-hour or four-hour specification.

Grid-Scale Battery Storage Costs in 2026

Compare cell, pack, equipment and installed-system costs separately. A price per kWh is meaningful only when the storage duration, capacity basis, destination market and included work are defined.

Cell, pack, and system pricing

Battery pack prices exclude PCS, transformers and on-site installation. When budgeting a 2026 grid-scale battery project in Europe, the US or China, compare installed cost per kWh using quotations with the same MW output, usable MWh, discharge duration, grid voltage and import conditions.

A DC-side battery container normally excludes the PCS and medium-voltage power block. An AC equipment package can add power conversion and controls, while a turnkey project may also include foundations, cabling, protection, installation and commissioning. State transformer, switchgear, grid upgrades, land, taxes, freight and O&M scope explicitly before comparing prices. The cost analysis of battery energy storage systems covers the component-level budget.

AC-coupled vs DC-coupled affects total CapEx

For solar-plus-storage, AC-coupled vs DC-coupled architecture changes inverter sizing, DC/AC conversion paths, clipped-energy capture and control integration. Compare the actual equipment and energy yield for both layouts rather than applying a fixed percentage saving.

LCOS and revenue stacking

Levelized cost of storage (LCOS) depends on financing, efficiency, cycling, degradation and lifetime delivered energy. Ember's $65/MWh case excludes charging electricity; definitions that include charging, such as Lazard's LCOS framework, are not directly comparable. Model capacity payments, ancillary services and energy arbitrage using the market's participation rules and dispatch constraints.

Key Benefits of Grid-Scale Battery Storage

Higher renewable penetration without curtailment

The "duck curve" - solar peaking at midday, demand peaking at sundown - is now a daily reality in California, South Australia, Spain, and increasingly Texas. Without storage, operators must curtail clean power or run gas. Grid-scale BESS shifts the midday surplus to the evening peak. In ERCOT during summer 2024, batteries reduced curtailment by double-digit percentages on multiple weeks.

Frequency regulation and voltage support

Grids run on tight frequency tolerances - 50 Hz in Europe, 60 Hz in North America. Batteries respond to deviations within tens of milliseconds, several orders of magnitude faster than thermal generators. They can also inject or absorb reactive power for voltage support, which becomes more important as inverter-based generation displaces synchronous machines.

Peak shaving and energy arbitrage

Buying low, selling high. Peak shaving with BESS reduces stress on transmission infrastructure and can defer or replace expensive grid upgrades - often called the "non-wires alternative" use case. New York's Brooklyn Queens Demand Management program is the canonical example, but utilities across Europe and Australia are now using storage similarly.

Black start capability

After a blackout, large generators need power to restart - historically supplied by small diesel sets. A grid-scale BESS can provide black start service, supplying the seed power to bring transmission segments and generators back online. This is now an accredited service in several ISO markets.

Replacing gas peakers

Peaker plants run a few hundred hours a year but must be available 8,760 hours. Storage increasingly displaces them: equivalent or faster response, lower operating cost, zero direct emissions. In California, several legacy gas peakers have been retired or repurposed as new battery projects came online; similar patterns are now visible in ERCOT and the UK.

What 2026 Grid Records Reveal About the Role of Batteries

Operating data from high-renewable power systems show that grid-scale batteries are moving beyond a marginal ancillary-service role. The International Energy Agency's 2026 analysis reports that California battery output supplied more than 40% of the state's electricity load during part of the evening of March 29, 2026.

The same analysis found that batteries supplied more than 60% of California's hour-to-hour power-system ramping requirement during the first quarter of 2026, compared with less than 1% five years earlier. In Texas, batteries contributed more than 40% of ramping in the ERCOT market during April 2026.

These figures are important because ramping capability measures more than instantaneous battery output. It shows whether the battery fleet can absorb power during periods of surplus generation and then increase discharge as solar output falls or electricity demand rises.

Operational lessons for battery developers

• Available energy matters as much as rated power. A battery cannot provide its contracted MW output through the critical peak period unless sufficient state of charge remains available.
• Dispatch forecasting becomes a reliability function. Load, renewable output, weather, market prices, and grid instructions must be forecast together to preserve energy for the highest-value interval.
• Fleet saturation can change the revenue model. As more batteries enter the same market, revenues may shift from shallow ancillary-service markets toward energy shifting, capacity, congestion management, and multi-service optimisation.
• Performance requirements may become more demanding. Grid operators can introduce minimum state-of-charge rules, capacity accreditation tests, telemetry requirements, availability obligations, and non-performance penalties as batteries take on a larger system role.

Challenges of Grid-Scale Battery Storage

Thermal runaway and fire safety

Lithium-ion carries inherent thermal runaway risk. The Moss Landing fires (multiple events between 2021 and 2025) reshaped industry safety practice. Modern LFP chemistry is materially safer than the older NMC designs implicated in several of those incidents, but design discipline still matters: spacing, deflagration venting, gas detection, water-based suppression, and unit-level isolation.

NFPA 855 (2023 edition) sets minimum requirements for ESS installations in the US and is widely referenced internationally. UL 9540 and UL 9540A test methods are the de facto baseline for cabinet- and unit-level evaluation. UL 9540 addresses energy storage system safety; UL 9540A evaluates thermal-runaway fire propagation. NFPA 855 addresses installation requirements.Anyone specifying or insuring a project today should require both.

Interconnection queue is the bottleneck

This is the single biggest schedule risk in the US market. The Lawrence Berkeley National Laboratory's "Queued Up" report tracks interconnection backlogs across the major US ISOs and finds median wait times of 4–5 years for projects entering the queue, with some regions much worse. Storage is now the single largest category in those queues, and FERC Order 2023 reforms are still working through implementation. Schedule storage projects accordingly.

Critical materials and supply chain concentration

Lithium, nickel, cobalt, and manganese supply chains remain geographically concentrated. LFP has reduced dependence on cobalt and nickel, which is a real win, but lithium processing capacity is still dominated by China, and there is no near-term path to fully diversifying that. Tariffs and export controls are now an active variable in project economics, particularly for US-bound systems.

The long-duration storage gap

The vast majority of installed and contracted BESS sits in the 1–4 hour bucket. Long-duration energy storage (LDES) - typically defined as 10+ hours - is what grids will need to handle multi-day weather events and seasonal swings. Until LDES technologies scale, high-renewable grids will keep some form of dispatchable backstop, usually gas.

Grid-Scale Battery Storage Examples: 3 Real Projects

Hornsdale Power Reserve (South Australia)

• Capacity: 150 MW / 193.5 MWh (originally 100 MW / 129 MWh in 2017, expanded 2020)
• Online: December 2017
• Owner / operator: Neoen, Tesla supplied the BESS
• Revenue model: AEMO frequency control ancillary services contract plus market participation
• Why it matters: The first utility-scale lithium project to publicly demonstrate that batteries could outperform gas turbines on FCAS economics. AEMO has reported substantial savings on FCAS costs in South Australia attributable to Hornsdale in its first two years of operation.

Moss Landing Energy Storage (California, USA)

• Capacity (combined site): Vistra Phase 1+2 at 400 MW / 1,600 MWh; PG&E Tesla Megapack at 182.5 MW / 730 MWh
• Online: Phase 1 December 2020, expansions through 2022
• Owners: Vistra (former Dynegy site) and PG&E
• Key events: Multiple thermal incidents - September 2021 sprinkler-related event, February and September 2022 events on the Vistra system, and a major fire in January 2025 affecting a large portion of the older Vistra installation. Each event triggered regulatory review and accelerated industry safety practice.
• Lesson: Older NMC chemistry, dense indoor configurations, and water-based suppression interactions all factor in. Newer LFP-based designs with outdoor cabinets and unit-level isolation reflect direct response to what Moss Landing taught the industry.

Minety BESS (Wiltshire, UK)

• Capacity: 100 MW (two co-located 50 MW projects)
• Online: 2021
• Owners / financing: Penso Power developed; investors include China Huaneng Group and CNIC Corporation
• Revenue model: National Grid frequency response (Dynamic Containment), wholesale arbitrage, capacity market
• Why it matters: Demonstrated that standalone storage could anchor a viable merchant business case in a deregulated European market without renewable pairing. The UK has since become one of the most active battery markets in Europe.



Future Outlook: Where Grid-Scale Storage Is Headed

Market growth: still ahead of forecasts

Five years ago, most consensus forecasts undershot actual deployment by a wide margin. The IEA, BNEF, and Wood Mackenzie now project annual battery storage additions to continue growing through 2030, with cumulative installed capacity reaching multi-terawatt-hour scale by the early 2030s under most policy scenarios. China, the US, the EU, the UK, India, and Australia account for the bulk of near-term volume.

Long-duration energy storage moves from pilots to procurement

California's CPUC has issued LDES procurement targets. Several US states have followed. The UK's "Long Duration Electricity Storage Cap and Floor Scheme" is now active. These programs are designed to push 8+ hour technologies toward commercial scale because the grid economics for 4-hour batteries become marginal as more 4-hour batteries are added - saturation effects on arbitrage and ancillary service revenues are visible already in CAISO.

Policy: IRA, the EU Net Zero Industry Act, and tariffs

The US Inflation Reduction Act introduced standalone storage Investment Tax Credits under Section 48E - the first federal recognition of storage as a standalone asset class. Domestic content adders sweeten the math for projects sourcing US-made cells and modules, though qualifying remains operationally complex. The EU Net Zero Industry Act and the Battery Regulation are accelerating both manufacturing and deployment across the bloc. UK, Australia, and India have parallel mechanisms.

AI-driven dispatch is becoming a real cost lever

As markets get more volatile and revenue streams more layered, EMS optimization is shifting from rule-based logic to forecast-driven, machine-learning dispatch. The well-funded operators we work with now treat dispatch as a competitive moat, not a commodity software layer. This trend favors platform operators with multi-asset portfolios and disadvantages standalone projects without sophisticated trading capability.

Common Misconceptions, Briefly

"Grid storage is just backup." Backup is one function. Most grid-scale BESS cycles daily and earns its return from active grid services and arbitrage, not standby.

"4-hour batteries solve the energy transition." They solve the daily problem. Multi-day and seasonal balancing still need LDES or dispatchable generation.

"All lithium-ion is equally safe." LFP and NMC have materially different thermal profiles. Chemistry and system design both matter.

"Storage always lowers electricity costs." When it replaces peakers or defers transmission upgrades, yes. Outcomes depend on market structure and what you are comparing it to.

Specifying a Grid-Scale Project

If you are scoping a utility or co-located project, the technology choice, EPC region, and revenue stack all interact - they are not independent decisions. Polinovel's utility-scale plant solutions page outlines the configurations we have delivered and the questions worth asking before issuing a tender.
