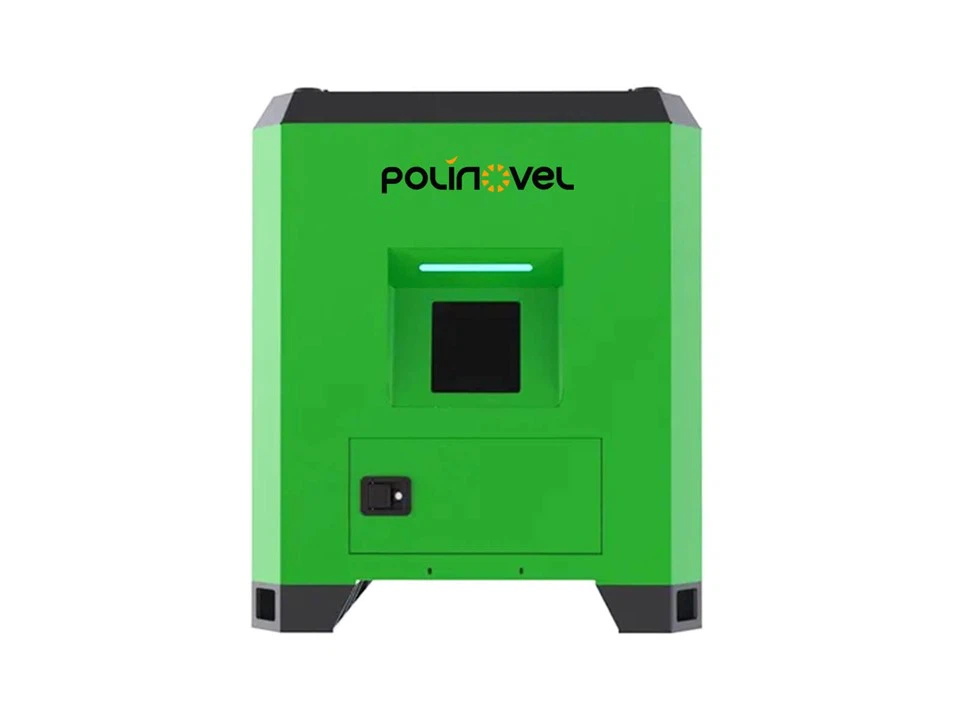

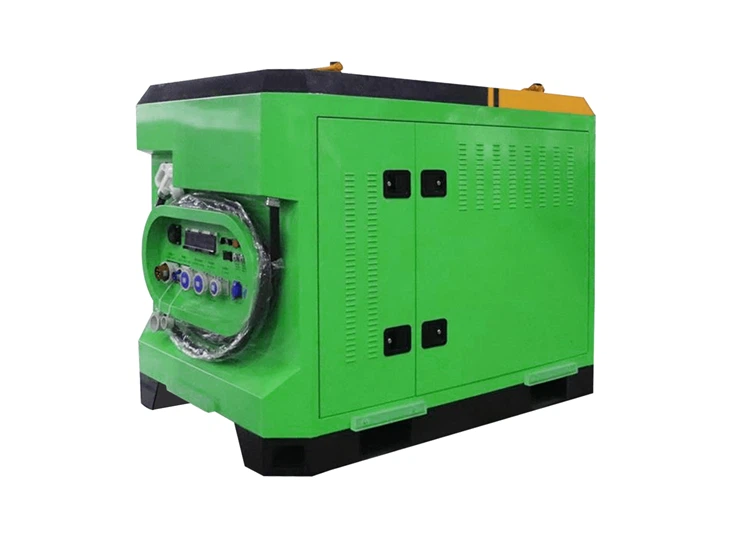

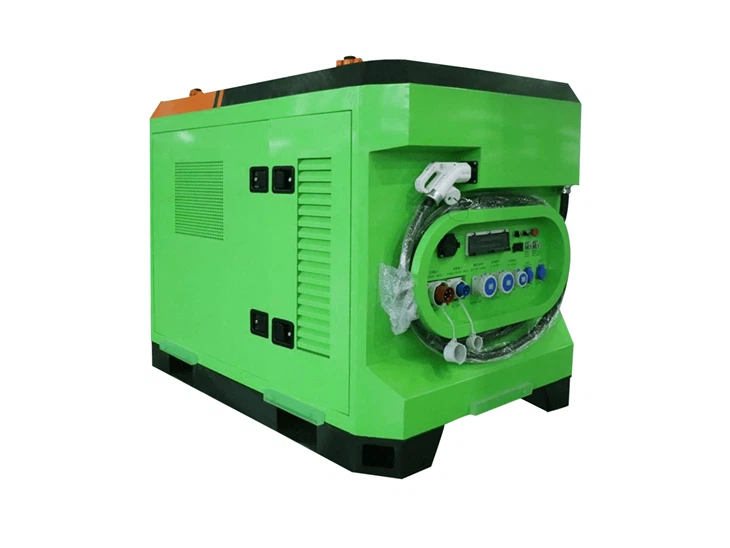

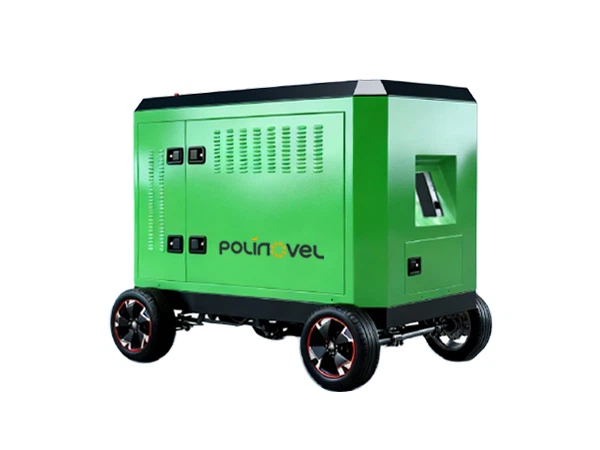

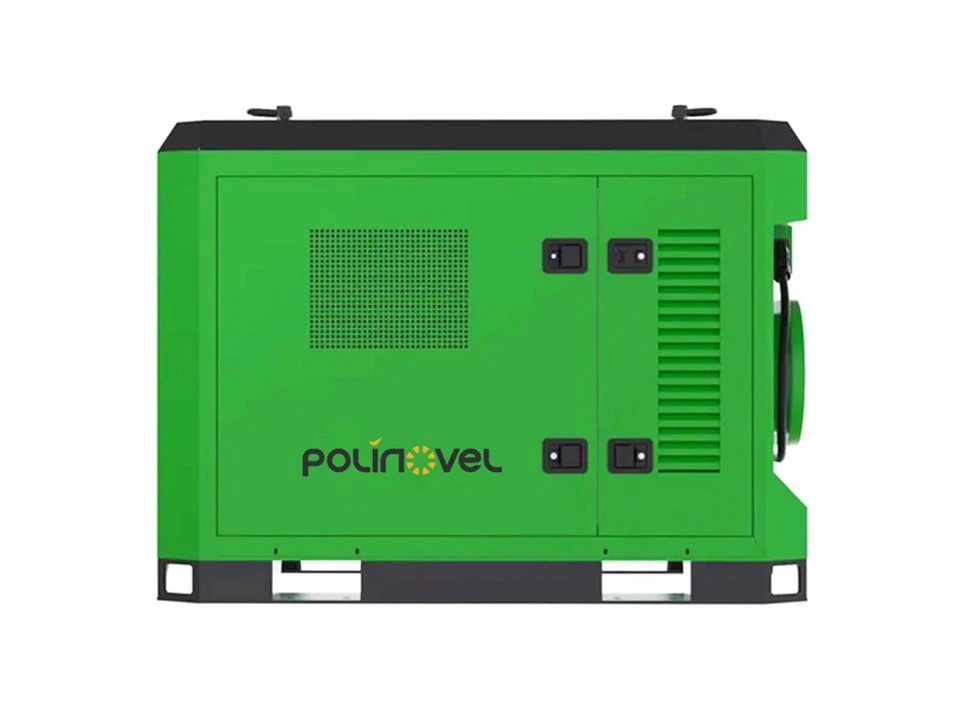

156kWh 80KW Mobile BESS Charging Station
This Mobile BESS Charging Station delivers reliable, long-duration power with a 156 kWh battery and intelligent power control. Designed for outdoor operation, emergency backup, and distributed energy scenarios, it provides stable charging and discharging across a wide voltage and grid range. Smart PCS control, high protection ratings, and advanced thermal management ensure safe, efficient operation in demanding environments, helping you reduce downtime, extend system life, and secure dependable power whenever it's needed.
Optimized for Your Energy Needs
Smart Power Conversion
The 60kVA PCS delivers intelligent charge and discharge management with precise voltage control, ensuring stable output while protecting connected loads and electrical systems.
Wide-Range System Compatibility
With a broad DC voltage range and support for 230/400VAC and 50/60Hz grids, the system integrates easily into various electrical environments, minimizing deployment limitations and improving application flexibility.
Efficient & User-Friendly Operation
Optimized power conversion and intelligent interaction simplify daily operation, improve energy efficiency, and reduce manual intervention, helping operators manage energy flow with confidence.
Robust Safety Protection
IP54-rated battery and PCS enclosures protect against dust and water, supporting safe, reliable operation in harsh outdoor and industrial environments.
Specification
| systematic name | class | parameter | |
| Battery System(BESS) | Ce11 |
Nominal capacity(Ah) | 314 |
| Operating voltage range (Vdc) | 3.2(2.8-3.65) | ||
| Rated capacity (Wh) | 1004.8 | ||
| Battery Module |
Grouping Scheme | 1P52S | |
| Nominal capacity (Ah) | 314 | ||
| Operating voltage range (Vdc) | 166.4(145.6-189.8) | ||
| Rated capacity (kWh) | 52.25 | ||
| levels of protection | IP65 | ||
| coolant passage | liquid cooling | ||
| Battery pack(system component) | Grouping Scheme | IP156S,3 battery modules (1 parallel and 3 series) | |
| Nominal capacity (Ah) | 314 | ||
| Operating voltage range (Vdc) | 499.2(436.8-569.4) | ||
| Rated capacity (kWh) | 156.75 | ||
| Energy Storage Inverter (PCS) |
direct current side | Operating voltage range (Vdc) |
420-850 |
| maximum current (A) | 150 | ||
| Exchange Three-phase four-wire(3W+N+PE) |
rated voltage(V) | 230/400 | |
| voltage deviation | -15%~+15% | ||
| Rated power (kVA) | 60 | ||
| Maximum grid-connected current (A) | 95.7 | ||
| Maximum off-grid current (A) |
95.7 | ||
| Rated grid frequency(Hz) | 50/60 | ||
| Charging system | input side | Rated power (maximum power)(KW) | 80 |
| Maximum input power(A) | 220 | ||
| Input voltage (Vdc) | 250-850 | ||
| outlet side | Number of output interfaces | Line 1 | |
| 1/A circuit, rated power range (kW) | 3-80 | ||
| 1/A current range (A) | 2-250 | ||
| 1/A channel, voltage range (V) | 200-1000 (rated voltage 1000) | ||
| Measurement parameters | Constant (imp/kWh) | 50 | |
| class of accuracy | 0.5 | ||
| measurement unit | KWh | ||
| inputoutput interface | DC input |
Interface 1 GB/T National Standard DC Power Supply Base |
1000Vdc,250A |
| DC output |
Interface 2 GB/T National Standard DC Discharge Gun |
1000Vdc,250A | |
| Exchange input/output through the same port(Note: Optional features are available at an additional cost.) |
Interface 3 Communication Interface 1 |
400Vac,125A, aviation socket | |
|
Interface 4 Interface 2 |
230Vac,10A National Standard Five-Pole |
||
| system parameter | essential parameter | cooling-down method | Battery compartment liquid cooling+electrical compartment air cooling |
| fire extinguisher system | Aerosol | ||
| levels of protection | IP54(PACK65) | ||
| working temperature | -10C-50C | ||
| Size(length*width*height) | 2100mm*1310mm*1550mm | ||
| weight of equipment(T) | 2.2T | ||
| Outer shell material | Precision sheet metal | ||
| Corrosion resistance | C4 | ||
| human-computer interface HMI | 10-inch touch screen | ||
Core Technical Parameters
Energy Storage Section
- Battery capacity: 156 kWh total, composed of 3 modular packs (1 parallel × 3 series), ideal for mobile high-power applications.
- Battery type: Lithium Iron Phosphate (LFP), high cycle life with intelligent Battery Management System (BMS) for full protection.
- Charge/Discharge efficiency: High round-trip efficiency ensures stable and reliable operation.
- Protection features: IP65-rated battery modules, thermal monitoring, and integrated safety strategies.
Power Section
- Output power: Single channel, 3–80 kW, dynamically adjustable according to vehicle requirements.
- Charging standards: Compatible with Chinese GB/T DC standard, up to 1000 V and 250 A.
- Optional bidirectional charging (V2G): Supports energy feedback and grid optimization where enabled.
- Power management: Fast response and flexible adjustment to meet diverse operational needs.
System Components
- Battery module and PACK design
- Power conversion system (PCS)
- Thermal management system (liquid cooling/air cooling)
- Fire protection and safety system
- Human-machine interface and remote monitoring
- Mobile platform (trailer/container/vehicle-mounted)

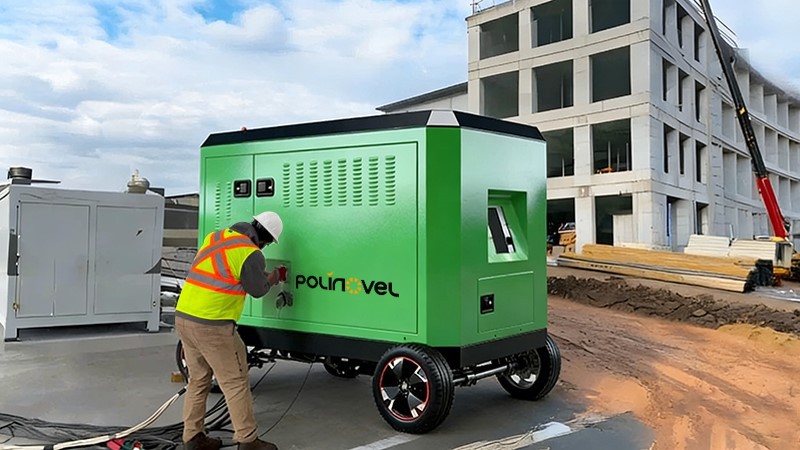

Application Scenarios
Temporary event/competition charging support

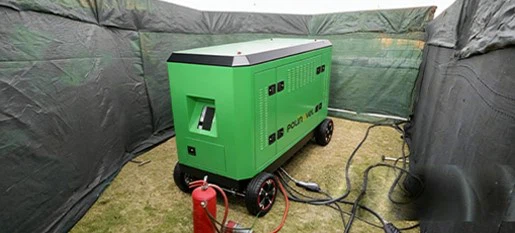

Emergency rescue and post-disaster power supply

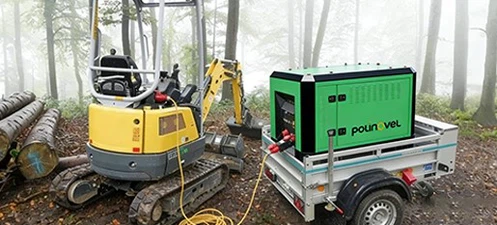

Remote areas/areas without grid coverage

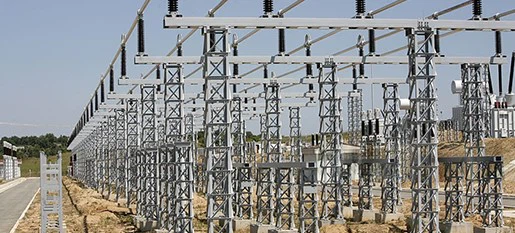

Grid support for short-term load balancing
Transitional solution during construction phase

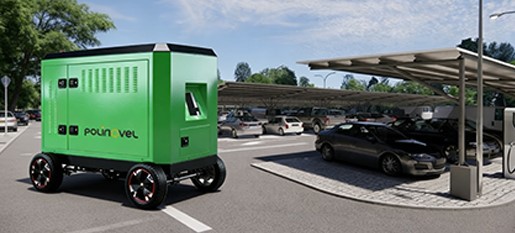

Charging station expansion/backup power supply
Regulations and Standards
Relevant national/industry standards (GB/T, IEC, etc.)
Fire safety requirements
Road transport permit (if applicable, for trailer-mounted systems)
Grid-connected/off-grid operation specifications
Battery transportation and storage regulations
Operations and Security
- Key points for daily inspection and maintenance
- Fault diagnosis and remote maintenance
- Battery thermal runaway protection
- Adaptability to extreme environments (high/low temperature/humidity)
- Service life and decommissioning procedures
Experience the freedom of on-demand charging. Our mobile BESS ensures your vehicles are ready to go without waiting in line.
